The base system consists of one analog loop and four indicating circuits. In addition the base system supports conventional hard wired modules. With its flexible modular design, the FX-2000 Series can be configured to meet challenging requirements without compromising its easy installation and operation.

The Mircom Group of Companies is pleased to introduce the new DSPL-420-16TZDS Main Display Module and the FX-2003-6DS-16LED Compact Fire Alarm Main Chassis. The New FX-2003-6DS-16LED is an FX-2000 main chassis that is equipped with the new DSPL-420-16TZDS display. This chassis offers 16 points of LED annunciation and is ready to use in an economic package. The DSPL-420-16TZDS display is functionally equivalent to the classic FX-2000 main display but is more compact.

This fire alarm chassis is ideal for smaller applications where LED requirements do not exceed the standard 16 indicators. The FX-2003-6DS-16LED includes a full length inner door and comes complete with a DSPL-420-16TZDS display module, main board, mounting back plate and transformer. In addition, this chassis has space to mount up to two annunciation or programmable modules as well as up to three internal adder modules. The FX-2003-6DS-16LED mounts in the UB-1024DS universal back box and requires a DOX-1024DS(R) door.

The i3 family is founded on three principles: Installation Ease, Intelligence, and Instant Inspection.

Installation Ease

The i3 line redefi nes installation ease with its plug-in design. This allows an installer to pre-wire the bases included with the heads. The large wire entry port and in-line terminals provide ample room for neatly routing the wiring inside the base. The base accommodates a variety of back box mounting methods as well as direct mounting with drywall anchors. To complete the installation, i3 heads plug-in to the base with a simple Stop-Drop ‘N Lock action.

Intelligence

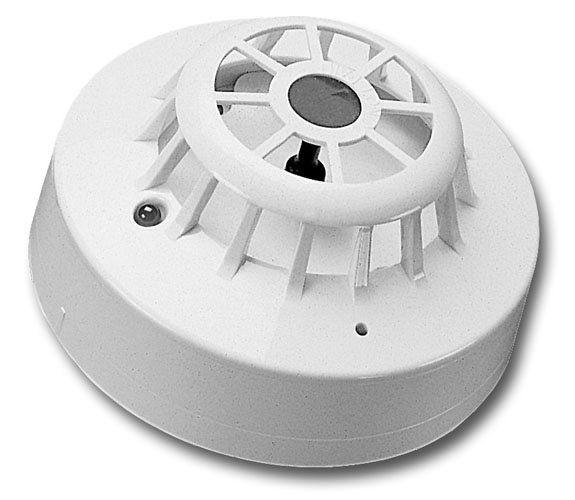

i3 detectors offer a number of intelligent features to simplify testing and maintenance. Drift compensation and smoothing algorithms are standard with the i3 line, to minimize nuisance alarms. When connected to the 2W-MOD2 loop test/maintenance module, or a panel equipped with the i3 protocol, 2-wire i3 detectors are capable of generating a remote maintenance signal when they are in need of cleaning. This signal is indicated via an LED located at the module and the panel. To read the sensitivity of i3 detectors, the SENS-RDR is a wireless device that displays the sensitivity in terms of percent per foot obscuration.

Instant Inspection

The i3 series provides wide angle red and green LED indicators for instant inspection of the detector condition, indicating: normal standby, out-of-sensitivity, alarm, or freeze trouble conditions. When connected to the 2WMOD2 loop test/maintenance module or a panel with the i3 protocol, the EZ Walk loop test feature is available on 2-wire i3 detectors. This feature verifi es the initiating loop wiring by providing LED status indication at each detector.

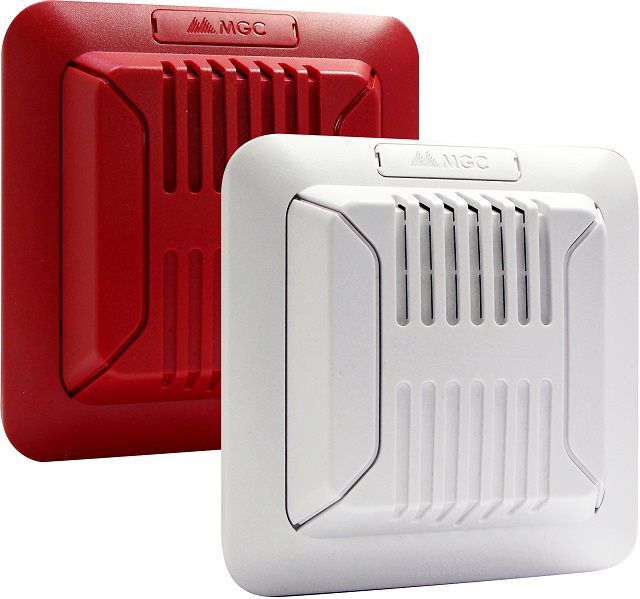

The FH-400 Series Horns provide a wide range of audible settings in a single compact device. The audible settings include Temporal, Continuous, March Time and 20 BPM tones that can each be set for Low or High volume settings.
